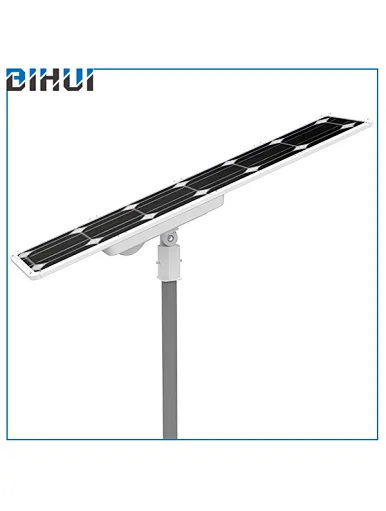

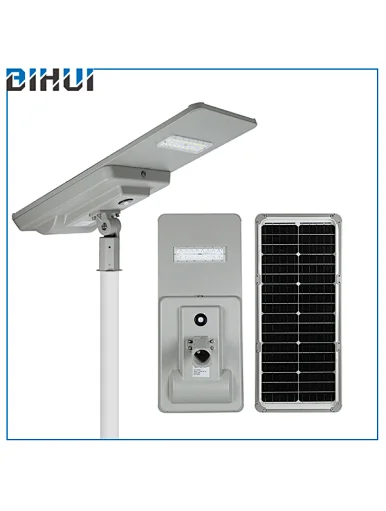

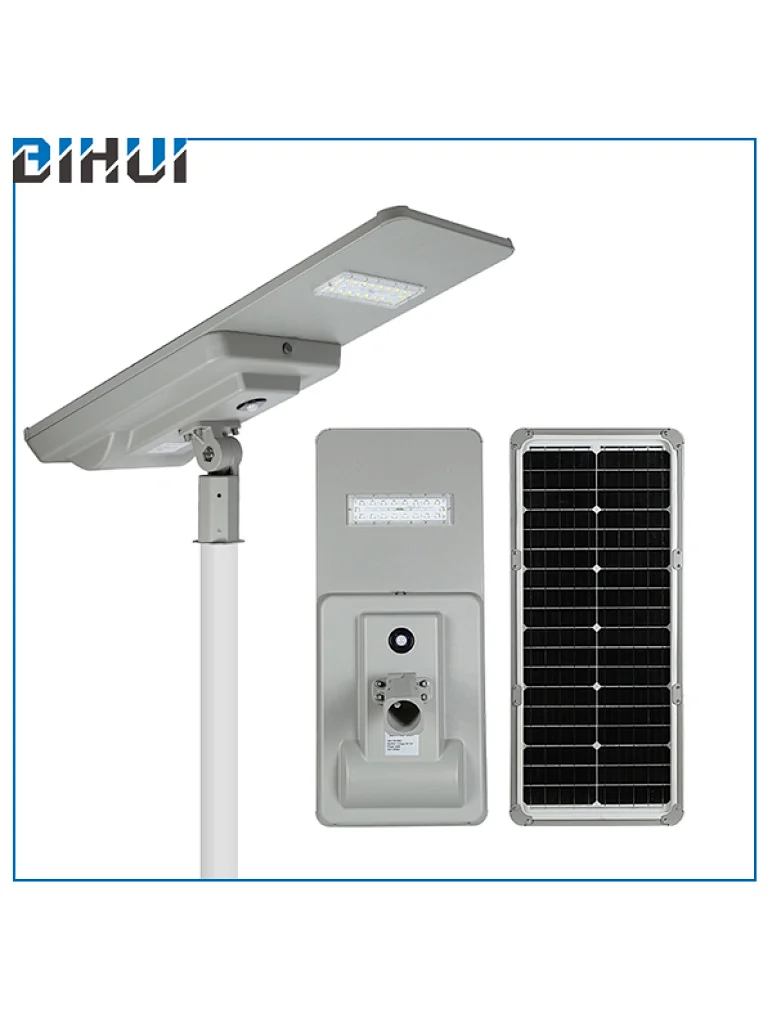

170lm/w 5years warranty OEM 12v 30w led solar street light
BH-1401-30W
● Classic all-in-one project design, by using Lumiled 5050 led chips (170lm/w) with LiFePO4 lithium battery, well-favored by the market.
● The adjustable range of the rotating lamp arm is 360°.
● Professional road optical design, II-S,II-M,III-M.
● PIR and Microwave Sensor is optional.
● You can expect 5 years of quality operation from BIHUI's all-in-one solar-led street light.
● The adjustable range of the rotating lamp arm is 360°.
● Professional road optical design, II-S,II-M,III-M.
● PIR and Microwave Sensor is optional.
● You can expect 5 years of quality operation from BIHUI's all-in-one solar-led street light.
guige
30W
Quantity
PROJECT ITEM LED SOLAR STREET LIGHT
oem 30 watt led solar street light
oem 30 watt led solar street light
●Led source：Lumileds 5050,170lm/w
●Monocrystalline solar panels，high conversion efficiency
●LiFePO4 Battery，Excellent performance High capacity More safety
●MPPT Controller，PIR and Microwave Sensor for choosen
●IP66 Protection，Plug-in Design，360°Adjusted Angle
●Multiple Lenses，II-S,II-M,III-M
●5 years warranty
BH1401-30W : 5100 lm BH1402-40W:6800 lm BH1403-50W:8500 lm
BH1404-60W:10000 lm BH1405-80W:13600 lm
oem 30 watt led solar street light
| ITEM | BH1401 |
| Solar Panel Parameters | Monocrystalline 18V 40W |
| Battery Parameters | LiFePO4 12.8V 18AH |
| System Voltage | 12V |
| LED Brand | Lumileds 5050 |
| Light Distribution | II-S,II-M,III-M |
| CCT | 6500K |
| Charge Time | 6 Hours |
| Working Time | 2-3 Days (Auto Control) |
| Function: | Two options:PIR/Microwave Sensor |
| Protection Grade | IP66,IK09 |
| Luminous Efficiency | 170Lm/W |
| Operating Temperature | -20℃ to 60℃ |
| Warranty | 5 Years |
| Material | Aluminum |
| Luminous Flux | 5100 lm |
| Lamp size: | 735*373*312.8mm |
| GW | 11.7kg |
| Packaging | 1pcs in 1 carton |
| Outer carton size | 830*455*180mm |
oem 30 watt led solar street lightInstallation
①:Fix the screw by M8 Hex Wrench
②:Adjust the M14 screw and fix the screw
③:360°Rotation
oem 30 watt led solar street lightCheck out Lighting effect
When the illumination is less than 100lux, it begins to work
oem 30 watt led solar street lightCheck out Project Gallery
Check our amazing all in one solar street light projects from all over the world
