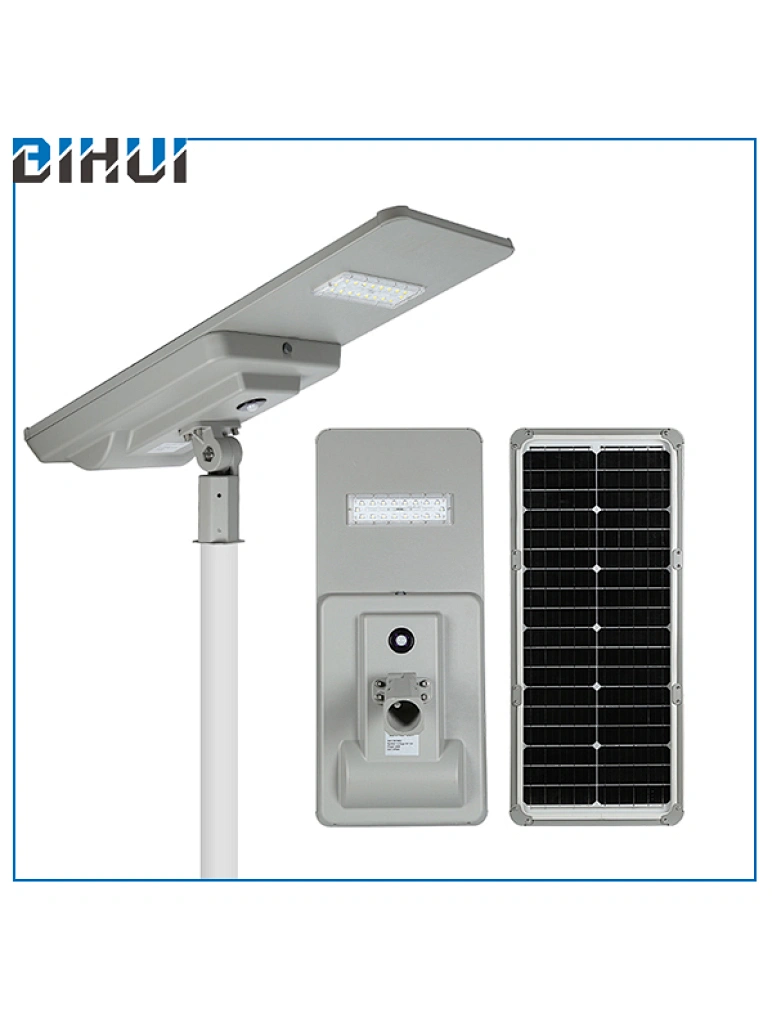

China IP65 All in one project item 170lm/w solar street light manufacturer
BH-1405-80W
● Classic all-in-one project design, by using Lumiled 5050 led chips (170lm/w) real power with LiFePO4 lithium battery, well-favored by the market.
● The adjustable range of the rotating lamp arm is 360°.
● Professional road optical design, II-S,II-M,III-M.
● PIR and Microwave Sensor is optional.
● You can expect 5 years of quality operation from BIHUI's all-in-one solar-led street light.
guige
80W
Quantity

                                                                  all in one led solar street light







5 years warranty all in one led solar street light




●Led source:Lumileds 5050,170lm/w
●Monocrystalline solar panels,high conversion efficiency
●LiFePO4 Battery,Excellent performance High capacity More safety
●MPPT Controller,PIR and Microwave Sensor for choosen
●IP66 Protection,Plug-in Design,360°Adjusted Angle
●Multiple Lenses,II-S,II-M,III-M
●5 years warranty





BH1401-30W : 5100 lm  BH1402-40W:6800 lm   BH1403-50W:8500 lm


BH1404-60W:10000 lm  BH1405-80W:13600 lm




all in one led solar street light

ITEMBH1405
Solar Panel ParametersMonocrystalline 36V 100W
Battery ParametersLiFePO4 25.6V 24AH
System Voltage24V
LED BrandLumileds 5050
Light DistributionII-S,II-M,III-M
CCT6500K
Charge Time6 Hours
Working Time2-3 Days (Auto Control)
Function:Two options:PIR/Microwave Sensor
Protection GradeIP66,IK09
Luminous Efficiency170Lm/W
Operating Temperature-20℃ to 60℃
Warranty5 Years
MaterialAluminum
Luminous Flux13600 lm
Lamp size:1482*373*312.8mm
GW20.4kg
Packaging1pcs in 1 carton
Outer carton size1580*455*180mm



Installation(all in one led solar street light)


①:Fix the screw by M8 Hex Wrench

②:Adjust the M14 screw and fix the screw

③:360°Rotation

5 years warranty all in one led solar street light


all in one led solar street light Check out Lighting effect

When the illumination is less than 100lux, it begins to work






all in one led solar street light Check out Project Gallery



Check our amazing all in one solar street light projects from all over the world


5 years warranty all in one led solar street light
