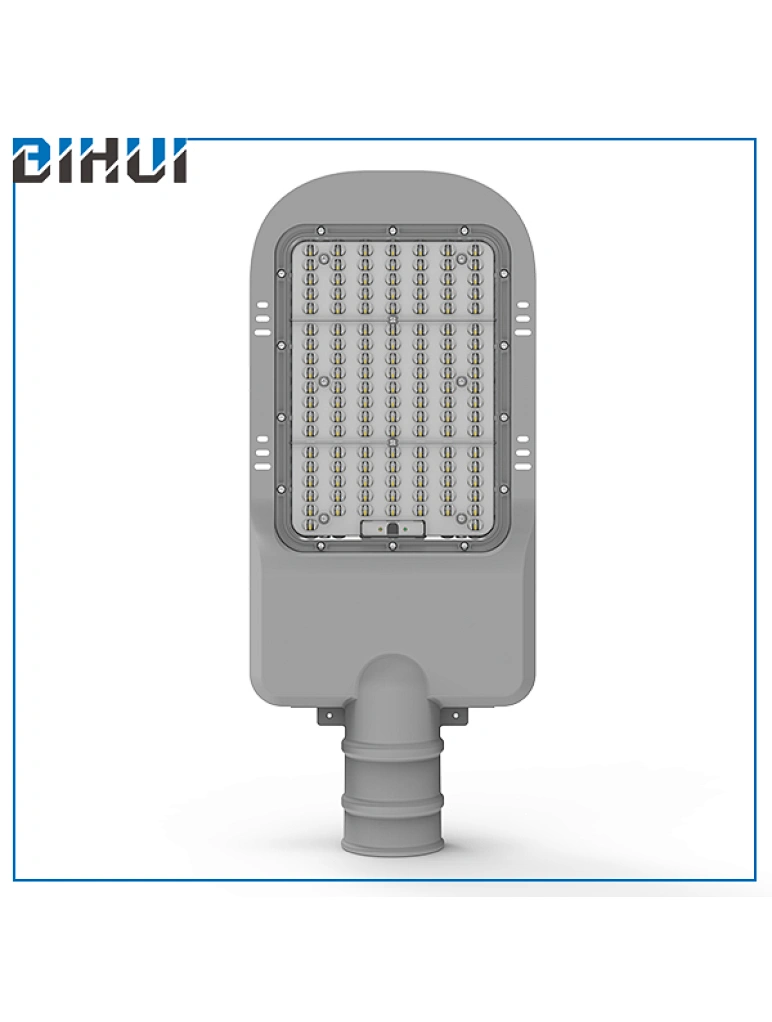

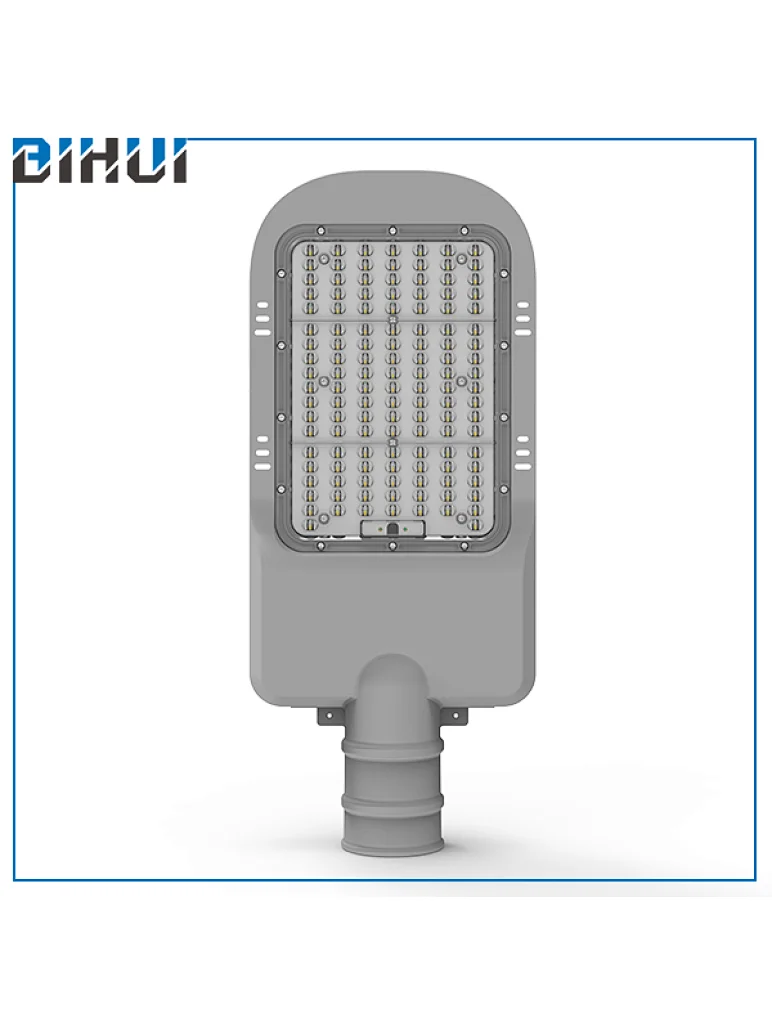

IP65 wholesale 100w outdoor led street light at factory price
BH-S012-100W
China
● Company own design, patented model,OEM be supported
● Lumileds chips, 130lm/w
● Brand driver or local driver for choosen, 4KV is the basic
● Photocell can be choose
● 5 years warranty for whole fixture
● All IES test reports can be provided
Quantity
IP65 wholesale 100w led street light at factory price


50W 100W 150W VIEWS
5 years warranty philips 100w led street light


                                                             philips 100w led street light FEATURE


                                                  1) Super High Performance Price Ratio:
                                                                        Higher efficacy LED by Lumileds
                                                                        China famous driver brand SOSEN,MOSO and INVENTRONICS
                                                                        More convenient for installation and maintenance

                                                                    2) Multiple Configurations Optional:
                                                                        10KV SPD is optional
                                                                        Photocell,timer dimming,DALI,0-10V dimming is optional
                                                                        Intelligent control system with NEMA interface is optional

                                                                   3) Wider Application:
                                                                       BHS01 series LED street light will provide the better
                                                                       Lumen output,the better stability and very long lifetime.
                                                                       Provide 5 years warranty for whole fixture.
                                                                       BH-S011 BH-S012 BH-S013
                                                                       It can be applied to streets, roads, highways, squares, parks and parking lots.






philips 100w led street light PARAMETERS



ModelBH-S012-100W
Nominal Power80W-120W
Led sourcePhilips 3030
Power Factor>0.95
Lumen>130Lm/W
Input Voltage100-277VAC,50/60Hz
Power Factor>0.95
Dimensions490*209*80mm
Light Distribution80*150°
CCT2700-6500K
CRIRa>70 /80
Protection GradeIP65,IK08
Electrical ProtectionCLASS I or CLASS II
THD<15%
HousingDie-casting Aluminum
Qty/Carton5PCS
Package Size545*520*260mm





philips 100w led street light LAMP SIZE


5 years warranty philips 100w led street light





philips 100w led street light CUSTOMERS INSTALLATION FEEDBACK



philips 100w led street light LIGHTING EFFECT



philips 100w led street light HOW TO INSTALLATION?


5 years warranty philips 100w led street light
