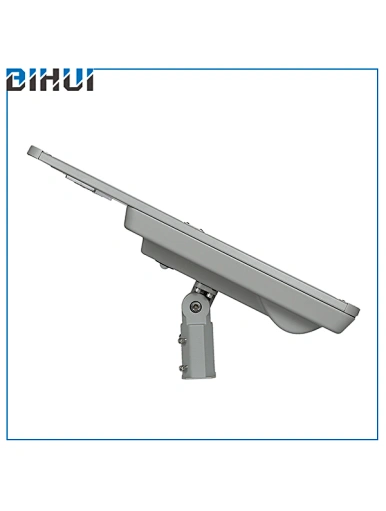

50W OEM Logo Waterproof Custom high quality led solar street light
BH-1403-50W
1
● Classic all-in-one project design, by using Lumiled 5050 led chips (170lm/w) real power with LiFePO4 lithium battery, well-favored by the market.
● The adjustable range of the rotating lamp arm is 360°.
● Professional road optical design, II-S,II-M,III-M.
● PIR and Microwave Sensor is optional.
● You can expect 5 years of quality operation from BIHUI's all-in-one solar-led street light.
● The adjustable range of the rotating lamp arm is 360°.
● Professional road optical design, II-S,II-M,III-M.
● PIR and Microwave Sensor is optional.
● You can expect 5 years of quality operation from BIHUI's all-in-one solar-led street light.
guige
50W
Quantity
50W High quality OEM logo waterproof solar street light
oem 50w led solar street light
oem 50w led solar street light
●Led source：Lumileds 5050,170lm/w
●Monocrystalline solar panels，high conversion efficiency
●LiFePO4 Battery，Excellent performance High capacity More safety
●MPPT Controller，PIR and Microwave Sensor for choosen
●IP66 Protection，Plug-in Design，360°Adjusted Angle
●Multiple Lenses，II-S,II-M,III-M
●5 years warranty
BH1401-30W : 5100 lm BH1402-40W:6800 lm BH1403-50W:8500 lm
BH1404-60W:10000 lm BH1405-80W:13600 lm
oem 50w led solar street light
| ITEM | BH1403 |
| Solar Panel Parameters | Monocrystalline 36V 60W |
| Battery Parameters | LiFePO4 25.6V 16.5AH |
| System Voltage | 24V |
| LED Brand | Lumileds 5050 |
| Light Distribution | II-S,II-M,III-M |
| CCT | 6500K |
| Charge Time | 6 Hours |
| Working Time | 2-3 Days (Auto Control) |
| Function: | Two options:PIR/Microwave Sensor |
| Protection Grade | IP66,IK09 |
| Luminous Efficiency | 170Lm/W |
| Operating Temperature | -20℃ to 60℃ |
| Warranty | 5 Years |
| Material | Aluminum |
| Luminous Flux | 8500 lm |
| Lamp size: | 988*373*312.8mm |
| GW | 14.5kg |
| Packaging | 1pcs in 1 carton |
| Outer carton size | 1008*455*180mm |
oem 50w led solar street light
Installation
①:Fix the screw by M8 Hex Wrench
②:Adjust the M14 screw and fix the screw
③:360°Rotation
oem 50w led solar street light
Check out Lighting effect
When the illumination is less than 100lux, it begins to work
oem 50w led solar street light
