High class wholesale outdoor 30w led street light
BH-2101-30W
China
● 20-240w,Annual sales abroad are more than 10,000 sets
● Photocell/ Intelligent contol depend on you need,4KV is the basic standard
● Lumileds 3030 chips,130lm/w
● Professional road lighting distribution,70*145°
● All IES test reports can be provided
Quantity

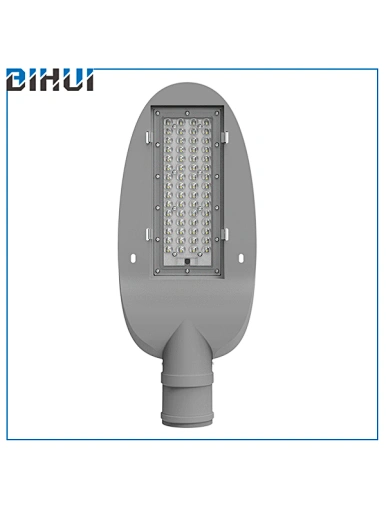

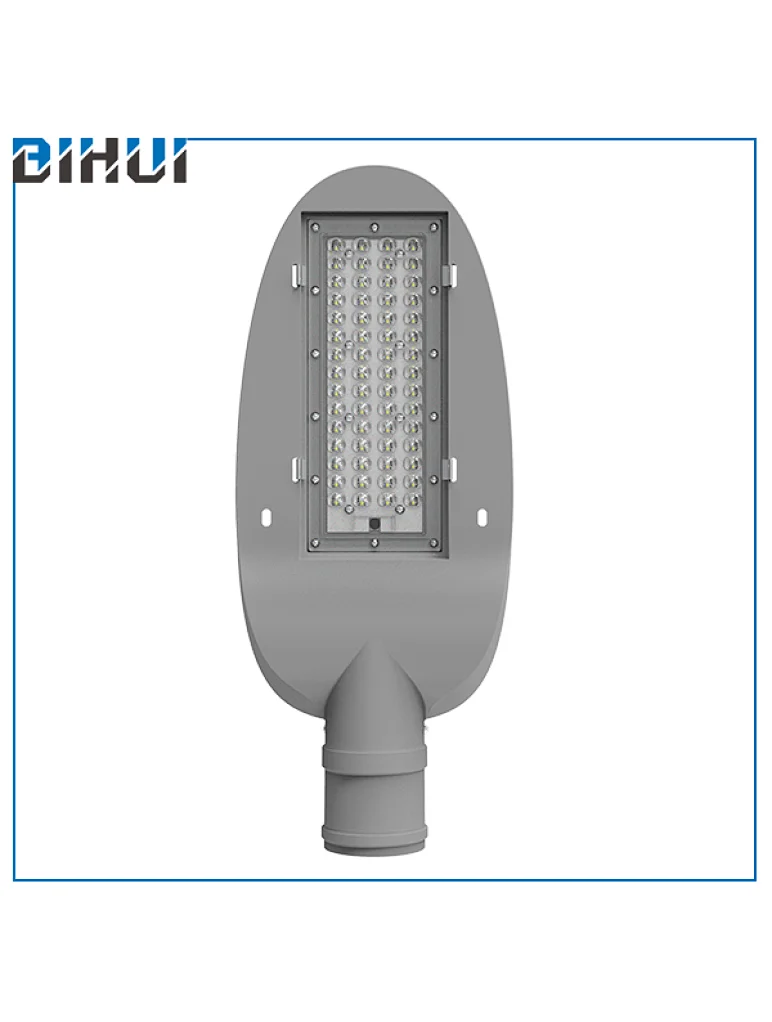

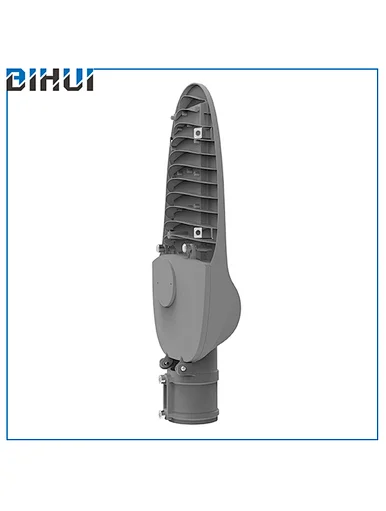

OUTDOOR 30W LED STREET LIGHT




30W 50W 100W 150W 200W 240W VIEWS

high light outdoor 30w led street light


                                                             outdoor 30w led street light FEATURE


                                                  1) Super High Performance Price Ratio:
                                                                        Higher efficacy LED by Lumileds
                                                                        China famous driver brand SOSEN,MOSO and INVENTRONICS
                                                                        More convenient for installation and maintenance

                                                                    2) Multiple Configurations Optional:
                                                                        4KV is the basic standard,10KV SPD is optional
                                                                        Photocell,timer dimming,DALI,0-10V dimming is optional
                                                                        Intelligent control system with NEMA interface is optional

                                                                   3) Wider Application:
                                                                       BH21 series LED street light will provide the better
                                                                       Lumen output,the better stability and very long lifetime.
                                                                       Provide 5 years warranty for whole fixture.
                                                                        It can be applied to streets, roads, highways, squares, parks and parking lots.






outdoor 30w led street light PARAMETERS



ModelBH-2101-30W
Nominal Power20W-30W
Led sourcePhilips 3030
Power Factor>0.95
Lumen>120Lm/W
Input Voltage100-277VAC,50/60Hz
Power Factor>0.95
Dimensions362*143*54mm
Light Distribution70*145°
CCT2700-6500K
CRIRa>70 /80
Protection GradeIP65,IK08
Electrical ProtectionCLASS I or CLASS II
THD<15%
HousingDie-casting Aluminum
Qty/Carton10PCS
G.W/Carton10.2kgs
Package Size380*445*405mm





outdoor 30w led street light LAMP SIZE


high light outdoor 30w led street light





outdoor 30w led street light IP65 WATERPROOF TEST







outdoor 30w led street light WORKSHOP PRODUCTION





outdoor 30w led street light HOW TO INSTALLATION?


high light outdoor 30w led street light
