High lumens all wattage IP65 waterproof 30w 50w 100w 150w 200w led street lighting
BH-2105-200W
1
CHINA
● 20-240w，Annual sales abroad are more than 10,000 sets
● Photocell/ Intelligent contol depend on you need，4KV is the basic standard
● Lumileds 3030 chips,130lm/w
● Professional road lighting distribution,70*145°
● All IES test reports can be provided
● Photocell/ Intelligent contol depend on you need，4KV is the basic standard
● Lumileds 3030 chips,130lm/w
● Professional road lighting distribution,70*145°
● All IES test reports can be provided
Quantity

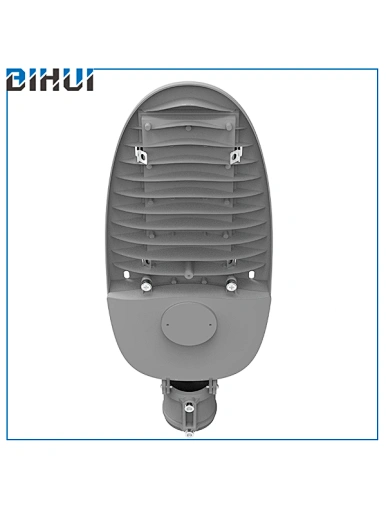

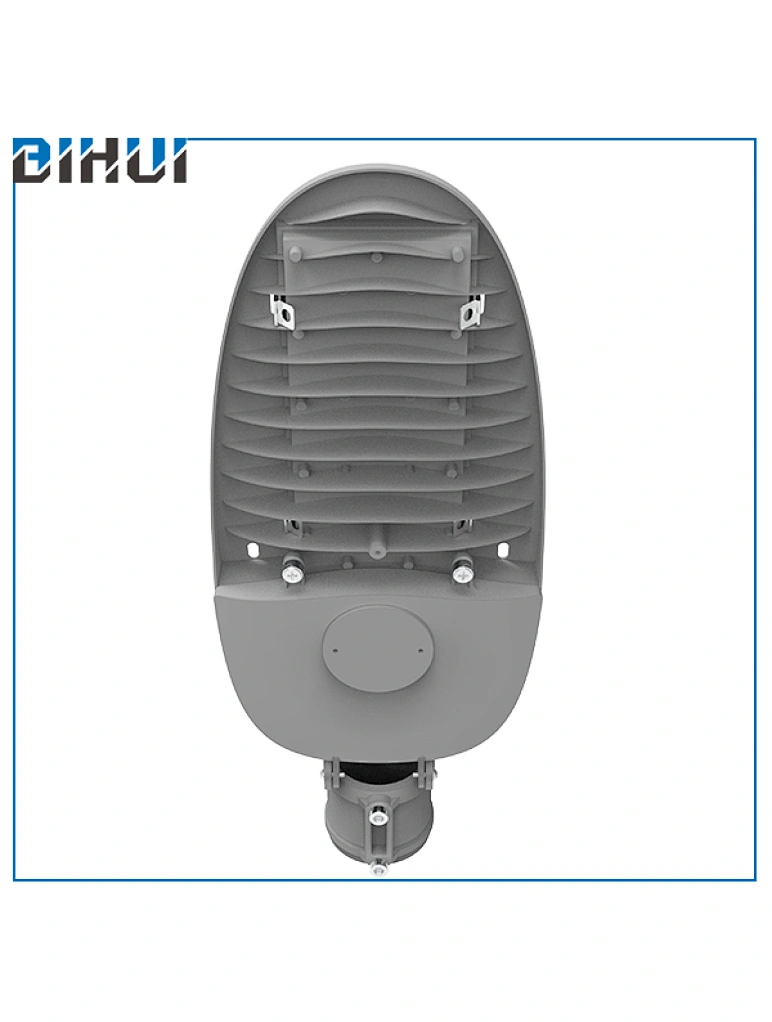

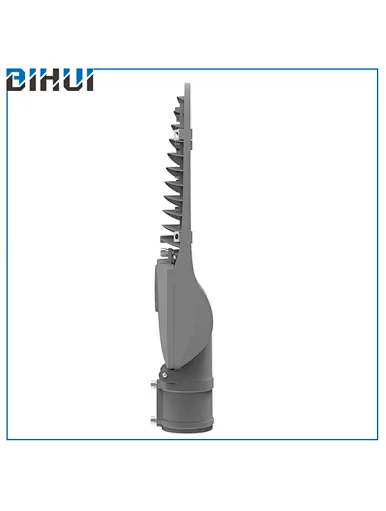

HIGH LUMEN IP65 200W LED STREET LIGHT
30W 50W 100W 150W 200W 240W VIEWS
200w led street light PARAMETERS
200w led street light LAMP SIZE
200w led street light IP65 WATERPROOF TEST
200w led street light WORKSHOP PRODUCTION
200w led street light HOW TO INSTALLATION?
30W 50W 100W 150W 200W 240W VIEWS
200w led street light FEATURE
1) Super High Performance Price Ratio:
Higher efficacy LED by Lumileds
China famous driver brand SOSEN,MOSO and INVENTRONICS
More convenient for installation and maintenance
2) Multiple Configurations Optional:
4KV is the basic standard,10KV SPD is optional
Photocell,timer dimming,DALI,0-10V dimming is optional
Intelligent control system with NEMA interface is optional
3) Wider Application:
BH21 series LED street light will provide the better
Lumen output,the better stability and very long lifetime.
Provide 5 years warranty for whole fixture.
It can be applied to streets, roads, highways, squares, parks and parking lots.
Higher efficacy LED by Lumileds
China famous driver brand SOSEN,MOSO and INVENTRONICS
More convenient for installation and maintenance
2) Multiple Configurations Optional:
4KV is the basic standard,10KV SPD is optional
Photocell,timer dimming,DALI,0-10V dimming is optional
Intelligent control system with NEMA interface is optional
3) Wider Application:
BH21 series LED street light will provide the better
Lumen output,the better stability and very long lifetime.
Provide 5 years warranty for whole fixture.
It can be applied to streets, roads, highways, squares, parks and parking lots.
200w led street light PARAMETERS
| Model | BH-2105-200W |
| Nominal Power | 180W-240W |
| Led source | Philips 3030 |
| Power Factor | >0.95 |
| Lumen | >120Lm/W |
| Input Voltage | 100-277VAC,50/60Hz |
| Power Factor | >0.95 |
| Dimensions | 742*337*114mm |
| Light Distribution | 70*145° |
| CCT | 2700-6500K |
| CRI | Ra>70 /80 |
| Protection Grade | IP65,IK08 |
| Electrical Protection | CLASS I or CLASS II |
| THD | <15% |
| Housing | Die-casting Aluminum |
| Qty/Carton | 2PCS |
| G.W/Carton | 8.5kgs |
| Package Size | 770*280*365mm |
200w led street light LAMP SIZE
200w led street light IP65 WATERPROOF TEST
200w led street light WORKSHOP PRODUCTION
200w led street light HOW TO INSTALLATION?
