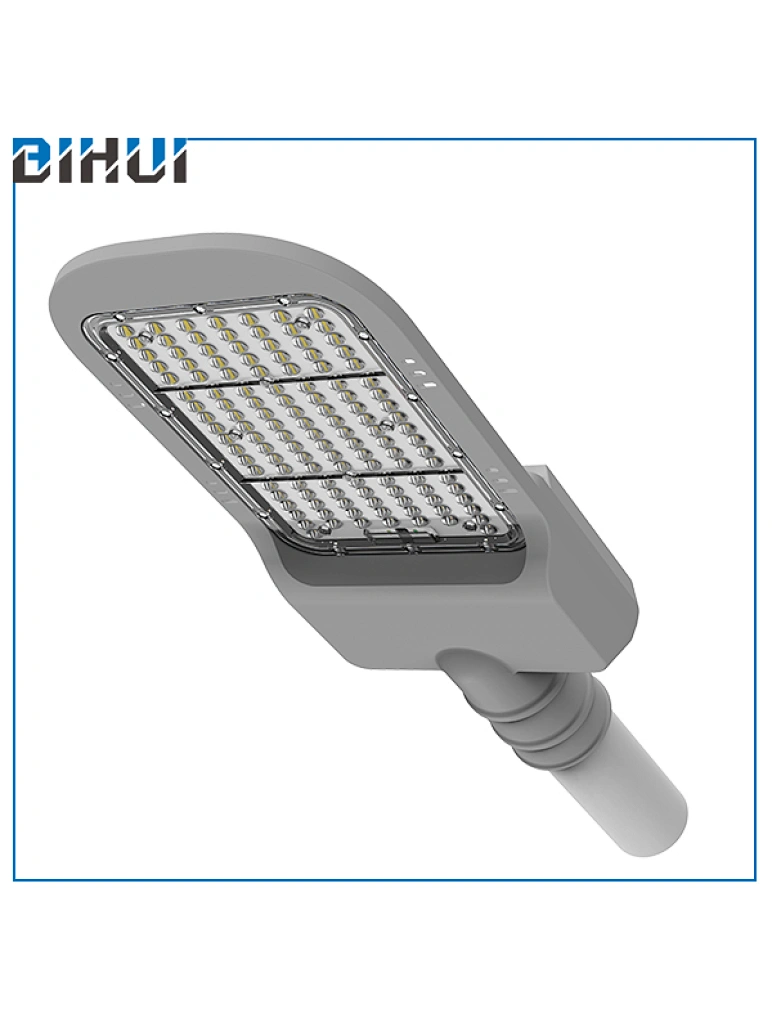

IP65 patented model wholesale price 50w led street light
BH-S011-50W
CHINA
● Company own design, patented model,OEM be supported
● Lumileds chips, 130lm/w
● Brand driver or local driver for choosen, 4KV is the basic
● Photocell can be choose
● 5 years warranty for whole fixture
● All IES test reports can be provided
Quantity
IP65 patented model wholesale 50w led street light


50W 100W 150W VIEWS
50w 100w 150w best led street light


                                                             best led street light FEATURE


                                                  1) Super High Performance Price Ratio:
                                                                        Higher efficacy LED by Lumileds
                                                                        China famous driver brand SOSEN,MOSO and INVENTRONICS
                                                                        More convenient for installation and maintenance

                                                                    2) Multiple Configurations Optional:
                                                                        10KV SPD is optional
                                                                        Photocell,timer dimming,DALI,0-10V dimming is optional
                                                                        Intelligent control system with NEMA interface is optional

                                                                   3) Wider Application:
                                                                       BHS01 series LED street light will provide the better
                                                                       Lumen output,the better stability and very long lifetime.
                                                                       Provide 5 years warranty for whole fixture.
                                                                       BH-S011 BH-S012 BH-S013
                                                                       It can be applied to streets, roads, highways, squares, parks and parking lots.






best led street light PARAMETERS



ModelBH-S011-50W
Nominal Power40W-60W
Led sourcePhilips 3030
Power Factor>0.95
Lumen>130Lm/W
Input Voltage100-277VAC,50/60Hz
Power Factor>0.95
Dimensions418*178*80mm
Light Distribution80*150°
CCT2700-6500K
CRIRa>70 /80
Protection GradeIP65,IK08
Electrical ProtectionCLASS I or CLASS II
THD<15%
HousingDie-casting Aluminum
Qty/Carton10PCS
Package Size545*445*405mm





best led street light LAMP SIZE


50w 100w 150w best led street light





best led street light CUSTOMERS INSTALLATION FEEDBACK



best led street light LIGHTING EFFECT



best led street light HOW TO INSTALLATION?


50w 100w 150w best led street light
