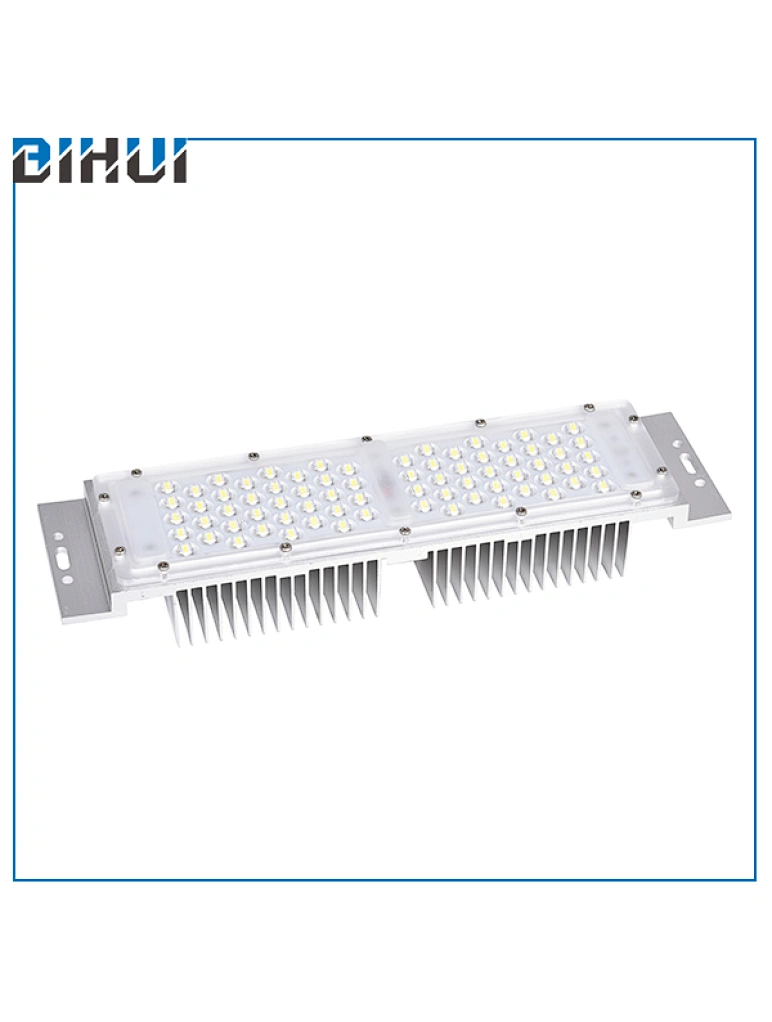

Lumileds 3030 SMD IP65 waterproof High luminous efficacy 50 watt led module
BH-ML01-L56/64/72/84
1
● Using high quality SMD3030 chips
● Modularization pluggable technology, easily installation
● High Power Factor＞0.9,Low THD Driver
● Excellent optics design,greatly improve the light utilization and evenness
● Single damage does not affect the other particle current
● Dust-proof and waterproof,IP65
● Easy replacement of old lights，Very small easy for shipping
● Modularization pluggable technology, easily installation
● High Power Factor＞0.9,Low THD Driver
● Excellent optics design,greatly improve the light utilization and evenness
● Single damage does not affect the other particle current
● Dust-proof and waterproof,IP65
● Easy replacement of old lights，Very small easy for shipping
Quantity
Lumileds 3030 SMD IP65 waterproof High luminous efficacy LED module 50W
50 watt led module
50 watt led module FEATURE
● Using high quality SMD3030 chips
● Modularization pluggable technology, easily installation
● High Power Factor＞0.9,Low THD Driver
● Excellent optics design,greatly improve the light utilization and evenness
● Single damage does not affect the other particle current
● Dust-proof and waterproof,IP65
● Easy replacement of old lights,Very small easy for shipping
● Modularization pluggable technology, easily installation
● High Power Factor＞0.9,Low THD Driver
● Excellent optics design,greatly improve the light utilization and evenness
● Single damage does not affect the other particle current
● Dust-proof and waterproof,IP65
● Easy replacement of old lights,Very small easy for shipping
50 watt led module PARAMETERS
| Model | BH-ML01-L56/64/72/84 |
| Nominal Power | 40W-60W |
| Led source | Philips 3030 |
| Chip Qty | 56/64/72/84Leds for choose |
| Lumen | 120-145Lm/W |
| Dimensions | 298*78*45mm (56LEDS) 298*75*45mm (64LEDS) 298*75*45mm (72LEDS) 298*71*45mm (84LEDS) |
| Light Distribution | 30°/60°/90°/30*70°/60*90°/70*145° |
| Material | Aluminum+PC |
| Voltage | According driver |
| CCT | 2700-5700K |
| CRI | Ra>70 /80 |
| Protection Grade | IP65 |
| Single weight | 0.7kg |
| Finish | Sliver |
| Warranty | 3/5years |
| Qty/Carton | 20PCS |
| Package Size | 675*375*190mm |
50 watt led module LAMP SIZE
50 watt led module COMPANY WATERPROOF TEST
For street light，For tunnel light，For high bay light，For stadium light，For garden light，For toll station

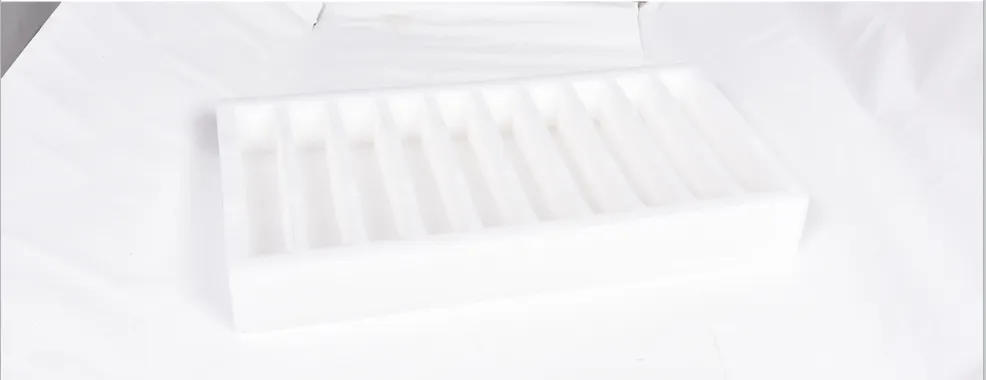

50 watt led module PACKING:
20pcs in 1 carton,1 layer for 10pcs,total for 2 layers
NO | Model | Power | N.W | Qty/Ctn | G.W | Outer Carton |
1 | BH-DL04-L48 | 40-50W | 0.7kg | 20 | 15kg | 675*375*190mm |
20pcs in 1 carton,1 layer for 10pcs,total for 2 layers
