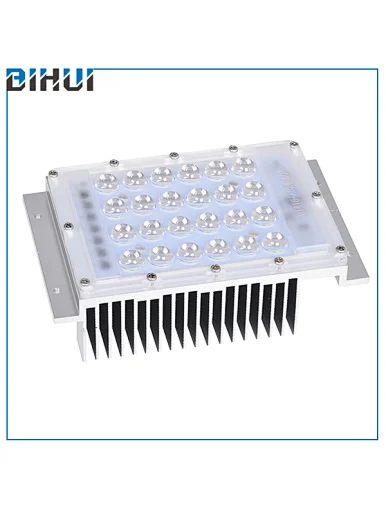

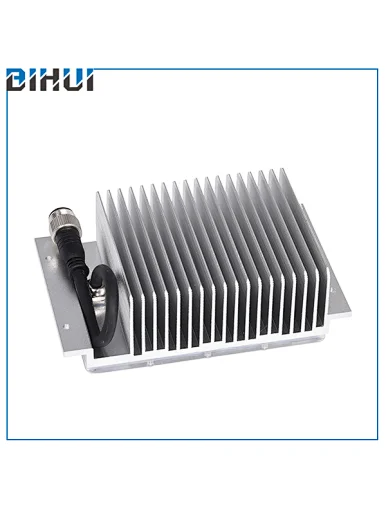

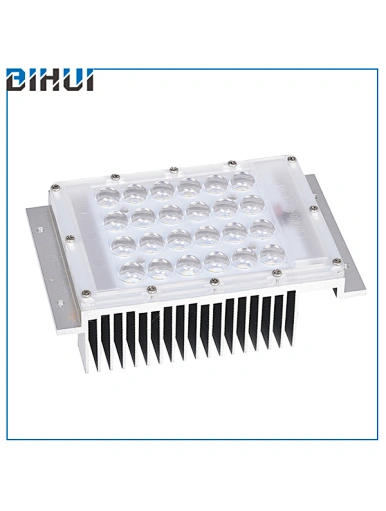

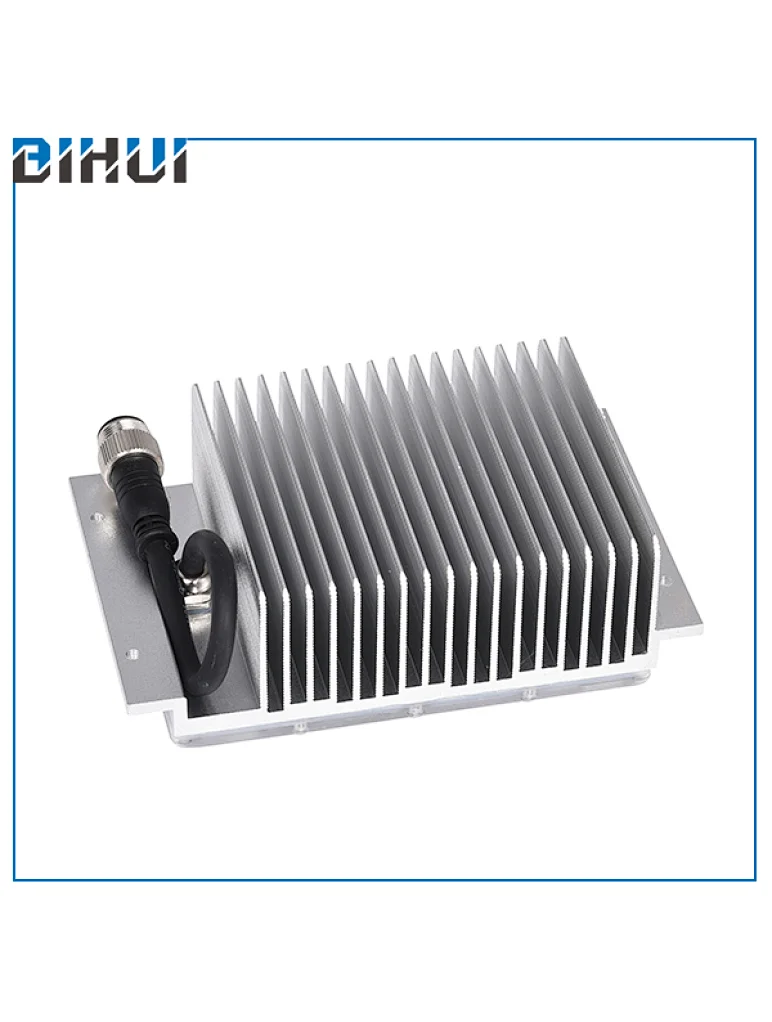

40W 50W Square Shape SMD 3030 Led Street Light Module

50w led module
40W 50W Square Shape SMD 3030 Led Street Light Module
BH-ML04-L48
1
● Using high quality SMD3030 chips
● Modularization pluggable technology, easily installation
● High Power Factor>0.9,Low THD Driver
● Excellent optics design,greatly improve the light utilization and evenness
● Single damage does not affect the other particle current
● Dust-proof and waterproof,IP65
● Easy replacement of old lights,Very small easy for shipping
Quantity

40W 50W Square Shape SMD 3030 Led Street Light Module


​​​
50w led module

3 years warranty 50w led module





                                                             50w led module FEATURE

                                                    ● Using high quality SMD3030 chips
                                                                     ● Modularization pluggable technology, easily installation
                                                                     ● High Power Factor>0.9,Low THD Driver
                                                                     ● Excellent optics design,greatly improve the light utilization and evenness
                                                                     ● Single damage does not affect the other particle current
                                                                     ● Dust-proof and waterproof,IP65
                                                                     ● Easy replacement of old lights,Very small easy for shipping


​​​
50w led module PARAMETERS



ModelBH-ML01-L48
Nominal Power40W-50W
Led sourcePhilips 3030
Lumen>115Lm/W
Dimensions160*100*50mm
Light Distribution60°/90°/80*150°
MaterialAluminum+PC
VoltageAccording driver
CCT2700-5700K
CRIRa>70 /80
Protection GradeIP65
Single weight0.7kg
FinishSliver
Warranty3years
Qty/Carton20PCS
Package Size675*375*190mm






50w led module LAMP SIZE


3 years warranty 50w led module








50w led module COMPANY WATERPROOF TEST







For street light,For tunnel light,For high bay light,For stadium light,For garden light,For toll station



3 years warranty 50w led module





50w led module PACKING:




20pcs in 1 carton,1 layer for 10pcs,total for 2 layers



NO
Model
Power
N.W
Qty/Ctn
G.W
Outer Carton
1
BH-DL04-L48
40-50W
0.7kg
20
15kg
675*375*190mm
