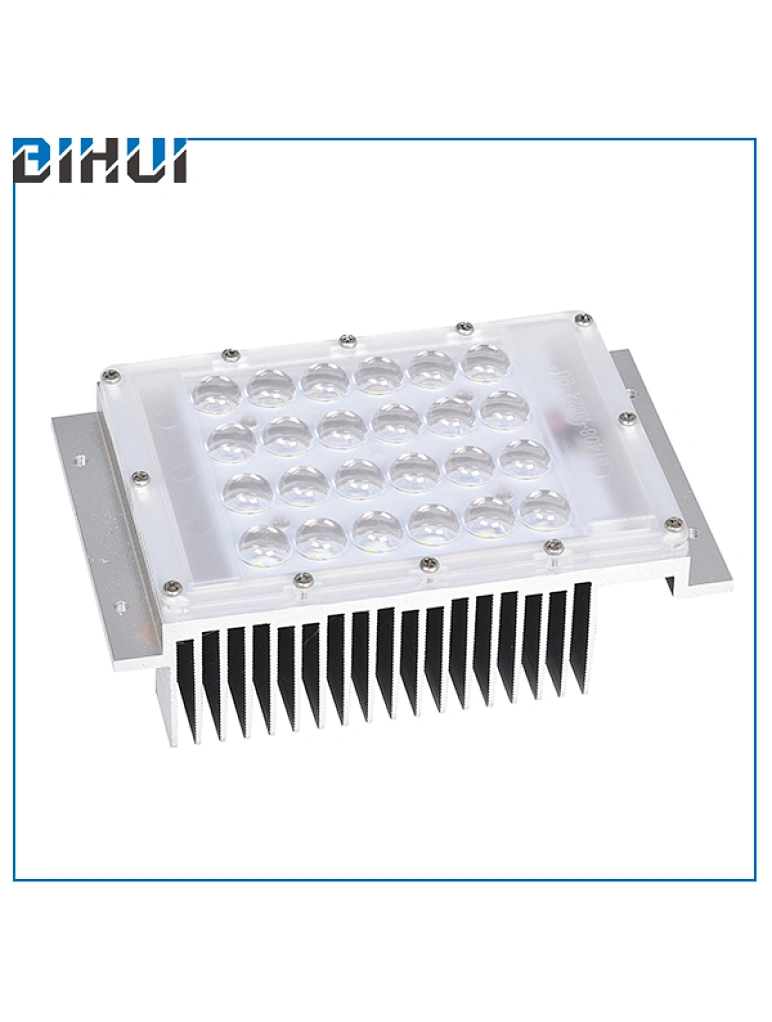

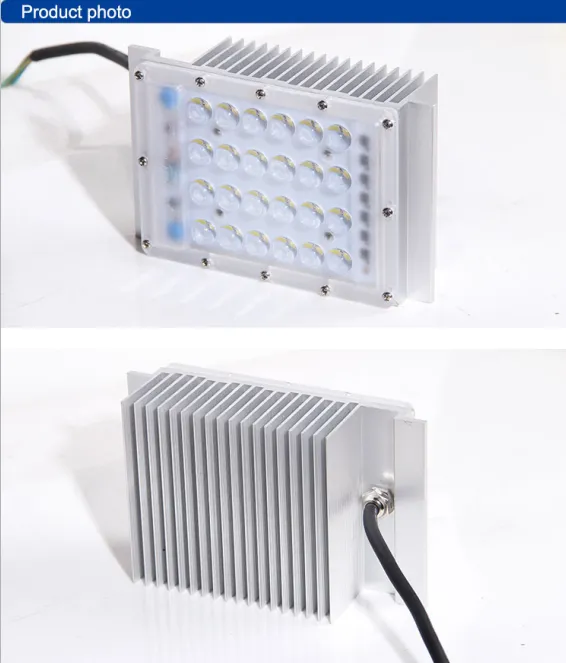

Waterproof Outdoor 50W Ac 220V Street Light Retrofit Smd 3030 ac led module
BH-DL04-L48
1
● Using high quality SMD3030 chips
● Modularization pluggable technology, easily installation
● High Power Factor ＞0.9,No need to drive directly to the mains
● Excellent optics design,greatly improve the light utilization and evenness
● Single damage does not affect the other particle current
● Dust-proof and waterproof,IP65
● Easy replacement of old lights，Very small easy for shipping
● Modularization pluggable technology, easily installation
● High Power Factor ＞0.9,No need to drive directly to the mains
● Excellent optics design,greatly improve the light utilization and evenness
● Single damage does not affect the other particle current
● Dust-proof and waterproof,IP65
● Easy replacement of old lights，Very small easy for shipping
Quantity
IP65 OUTDOOR AC LED MODULES
（led module manufacturers）
FEATURE（led module manufacturers）
● Using high quality SMD3030 chips
● Modularization pluggable technology, easily installation
● High Power Factor ＞0.9,No need to drive directly to the mains
● Excellent optics design,greatly improve the light utilization and evenness
● Single damage does not affect the other particle current
● Dust-proof and waterproof,IP65
● Easy replacement of old lights,Very small easy for shipping
● Modularization pluggable technology, easily installation
● High Power Factor ＞0.9,No need to drive directly to the mains
● Excellent optics design,greatly improve the light utilization and evenness
● Single damage does not affect the other particle current
● Dust-proof and waterproof,IP65
● Easy replacement of old lights,Very small easy for shipping
PARAMETERS（led module manufacturers）
| Model | BH-DL01-L48 |
| Nominal Power | 40W-50W |
| Led source | Philips 3030 |
| Lumen | >110Lm/W |
| Dimensions | 160*100*50mm |
| Light Distribution | 60°/90°/80*150° |
| Material | Aluminum+PC |
| Voltage | 110V/AC220V |
| CCT | 2700-5700K |
| CRI | Ra>70 /80 |
| Protection Grade | IP65 |
| Single weight | 0.7kg |
| Finish | Sliver |
| Warranty | 3years |
| Qty/Carton | 20PCS |
| Package Size | 675*375*190mm |
LAMP SIZE（led module manufacturers）
COMPANY WATERPROOF TEST（led module manufacturers）

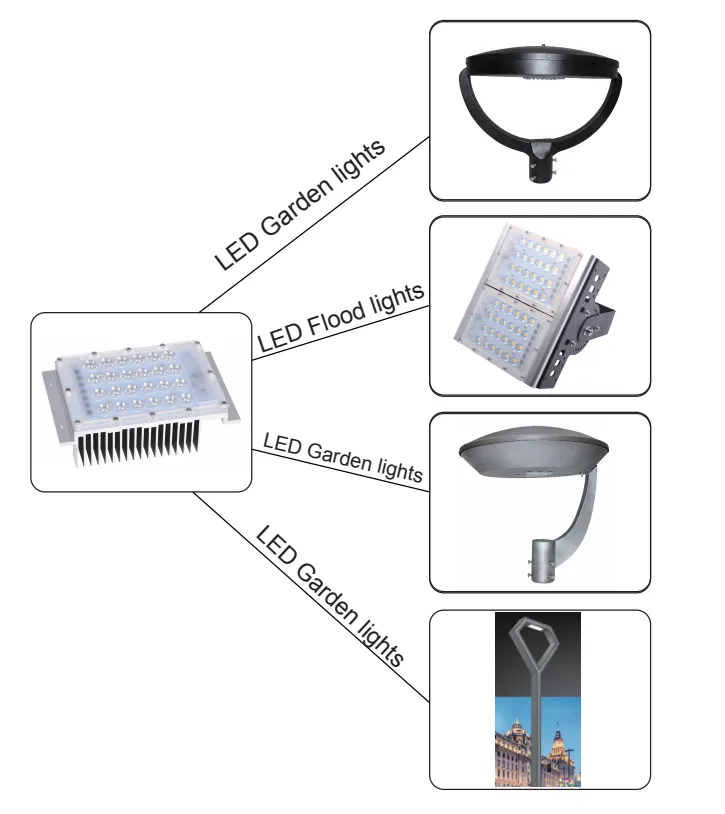

For street light，For tunnel light，For high bay light，For stadium light，For garden light，For toll station
（led module manufacturers）
PACKING:
（led module manufacturers）
20pcs in 1 carton,1 layer for 10pcs,total for 2 layers
NO | Model | Power | N.W | Qty/Ctn | G.W | Outer Carton |
1 | BH-DL04-L48 | 40-50W | 0.7kg | 20 | 15kg | 675*375*190mm |
